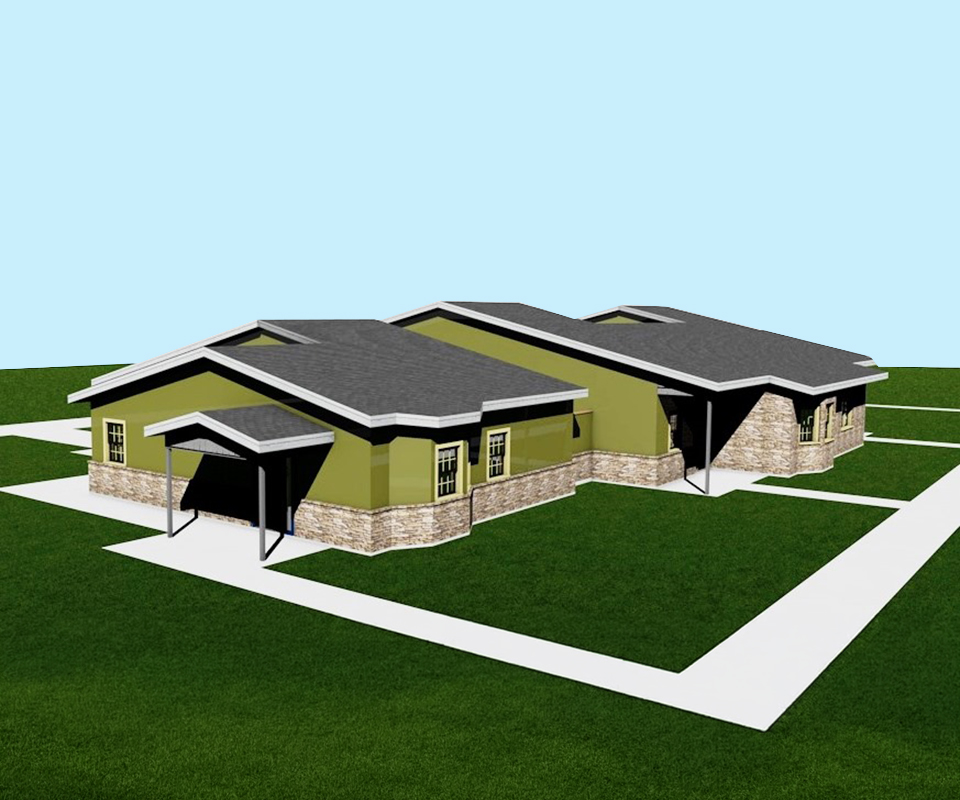

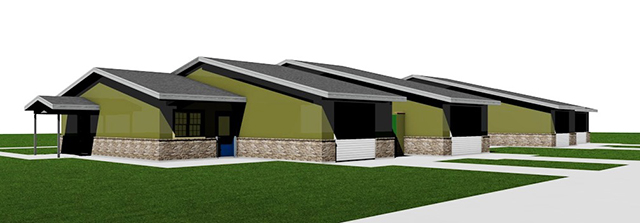

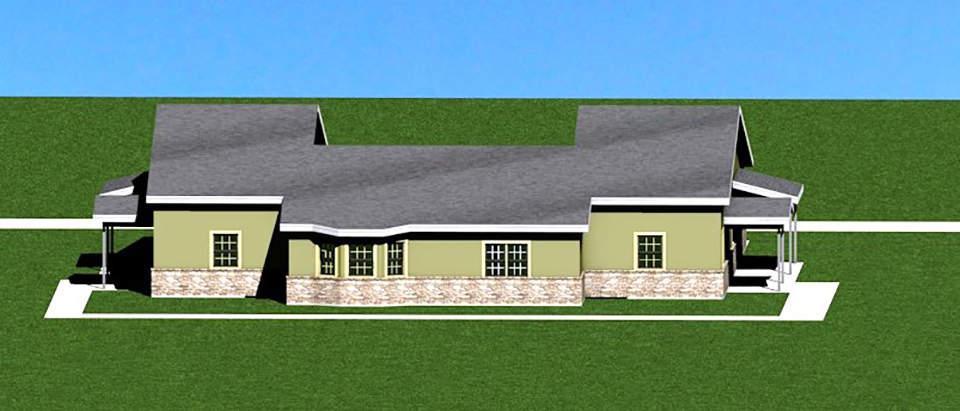

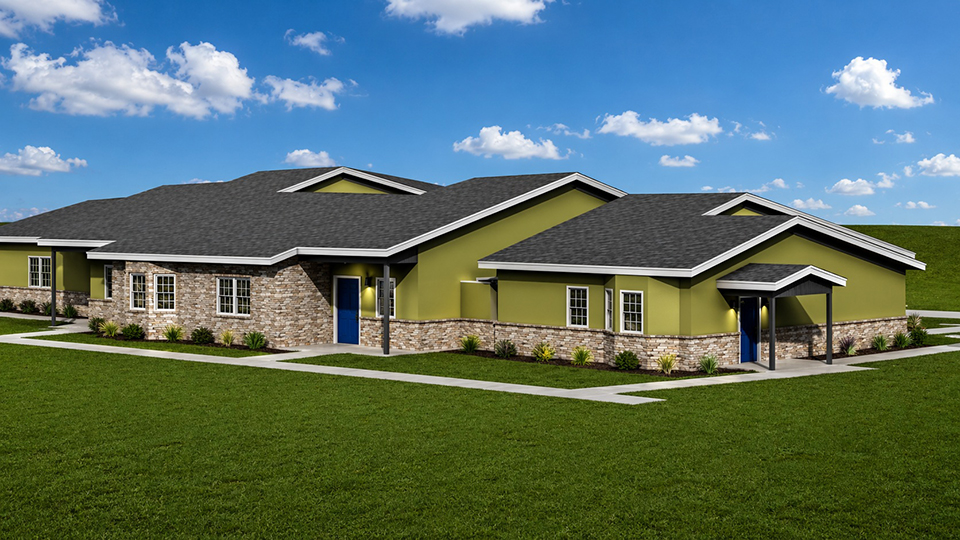

Conceptual Design for a Small Residence

Texas and Florida (Option 3)

PROJECT

Client: Name withheld
Location: Texas
Project Type: Residential - quadraplex - courtyard between end units
Facts:
  • Blend - Cottage/Traditional Style
  • 2 bedrooms, 1 bathroom
  • Single end unit living area - 910 SF
  • Center duplex living area - 2,598 SF
  • Left side - 1,306 SF
  • Right side - 1,292 SF
  • Single end unit living area - 907 SF
  • Open concept kitchen, dining, family room, laundry closet
  • Covered entry, covered patio
  • 1 car garage - each unit 365 SF

Story

Our client’s vision is to investigate conceptual solutions for small single-family homes that are simple to construct, energy-efficient, and wind-resistant, offering lower purchase, maintenance, and operating costs for homeowners.

Using similar floor plans for triplexes and quadraplexes in a cluster-style development optimizes costs and improves walkability through open space park-like common areas.

Some of the client’s past custom residential projects in the Bahamas, US Virgin Islands, Cayman Islands, and South Florida were constructed using readily available steel-clad insulated panels and proprietary steel connections that withstood hurricanes with minimal impact damage.

PROJECT TEAM

Architectural Firm Tom Hines - Architect, LLC
